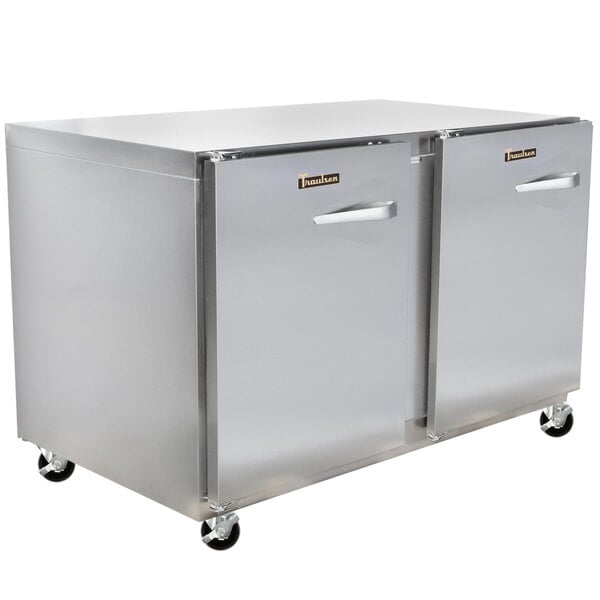

Traulsen UHT48-LL 48" 2-Section Solid Door Compact Undercounter Refrigerator, 13.56 cu. ft., Hinged Left/Left, 115V
A 48" compact undercounter refrigerator with two solid doors at 34°F to 38°F.
The Traulsen UHT48-LL is a UHT-Series 2-section compact undercounter refrigerator with solid doors hinged left/left and 13.56 cu. ft. of storage. A rear-mounted, front-breathing R-290 system holds 34°F to 38°F and allows zero-clearance installation. It rolls on 4" casters with brakes and plugs into a 115V NEMA 5-15P outlet with the 9 ft. cord provided.
Measure the counter opening and doorways; the smallest outside dimension is the 32" depth.
A balanced system with a clockwise airflow design, forced-air evaporator coil and capillary tube metering holds 34°F to 38°F.
The front-breathing, rear-mounted system lets the unit sit tight under a counter.
Self-closing solid doors with a stay-open feature and chemical-resistant, snap-in EZ-Clean gaskets.
Two coated wire shelves per section sit on pilasters; extra SHELF48 upper or lower shelves are sold separately.
Stainless steel exterior and interior with about 2" of high-density foamed-in-place insulation; back and bottom are galvanized steel.
A 115V outlet for the NEMA 5-15P plug. Traulsen lists 7.2 A at 115/60/1.
Traulsen rates the system to operate at 34°F to 38°F.
This model is hinged left/left. Traulsen says the doors are field reversible but this requires a new door.
Yes. Traulsen offers a heavy-gauge stainless steel top with a 4" backsplash, CU48TOP-BSW0, as a field-installed option.
Field-installed: SHELF48 upper or lower shelves, CK26 2-3/4" casters, CK24 3-1/2" casters, CK20 6" casters, LK4 6" legs. Factory: stainless finished back, -SB suffix.

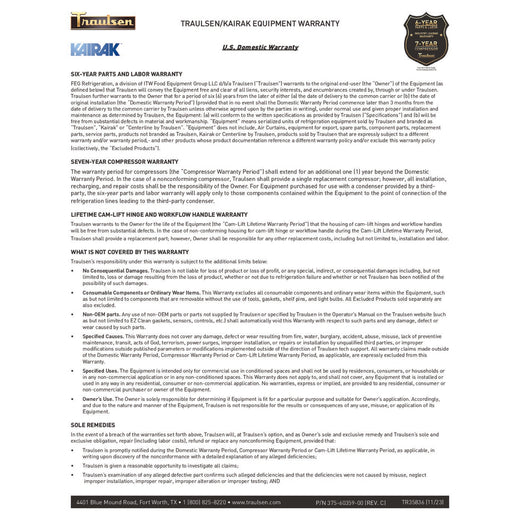

Traulsen provides a six-year parts and labor warranty plus one more year on compressor parts, seven years in total.
Yes. Traulsen equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Traulsen |
|---|---|
| Model Number | UHT48-LL |
| Series | UHT-Series Compact Undercounter |
| Width | 48 Inches |
| Depth | 32 Inches |
| Height | 33-5/8 Inches |
| Height Note | Includes 4" Casters |
| Capacity | 13.56 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 7.2 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9 ft. |
| Horsepower | 1/5 HP |
| Temperature Range | 34 - 38 Degrees F |
| Refrigerant | R-290 |
| Refrigerant Charge | 5 oz. |
| BTU | 1680 BTU, at 90°F Ambient and 20°F Evaporator |
| System | Self-Contained, Rear-Mounted, Front-BreathingCapillary TubeForced-Air Evaporator CoilNon-Electric Condensate Evaporator |
| Control | Electronic Control with Water-Resistant LED Display |
| Doors | 2 Solid DoorsHinged Left/LeftSelf-Closing with Stay-OpenEZ-Clean Magnetic GasketsField Reversible with New Door |
| Shelves | 4 Adjustable Coated Wire Shelves, 2 per Section, on Pilasters |
| Exterior | Stainless SteelGalvanized Steel Back and Bottom |
| Interior | Stainless Steel |
| Casters | 4 4" Casters, All with Brakes |
| Field-Installed Options | SHELF48 Upper or Lower ShelvesCU48TOP-BSW0 Stainless Top with 4" BacksplashCK26 2-3/4" CastersCK24 3-1/2" CastersCK20 6" CastersLK4 6" Legs |
| Factory-Installed Options | Stainless Steel Finished Back, -SB Suffix |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 6-Year Parts and Labor, 7-Year Compressor Parts |
