Description

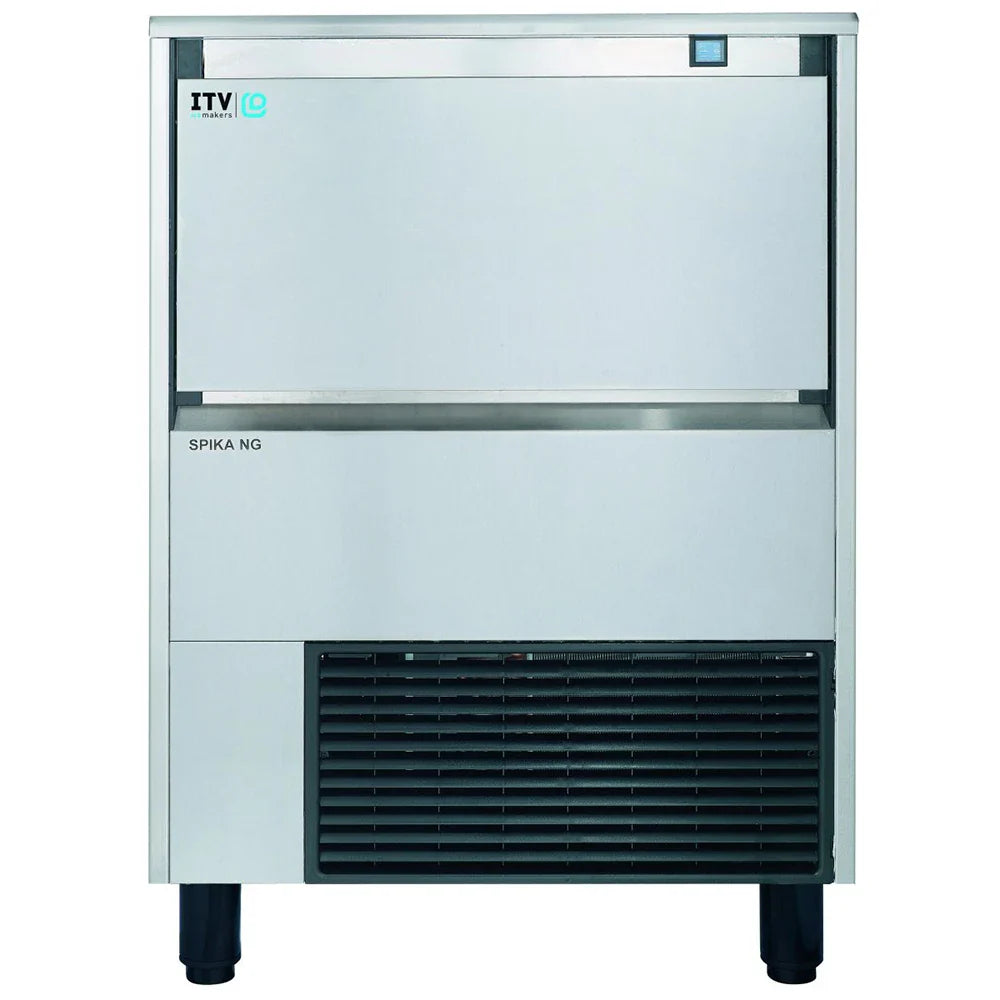

Great for drive-thrus, small restaurants, and school cafeterias, ITV Ice Makers SPIKA NG 230 A1H half cube undercounter ice maker produces as much as 223 pounds of ice a day, which can be stored in its 77-pound capacity ice bin. It has electronic controls to elevate performance in extreme climates and operates using natural R290 refrigerant. Its front ventilation system and self-contained condenser enable built-in installation beneath a counter, and to avoid deterioration from hard water, its "Never Stop" motor pump doesn't use seals. For quick service and installation access, this unit's panels are removable.
For a durability while matching existing equipment, the ITV Ice Makers SPIKA NG 230 A1H undercounter ice maker is made of stainless steel. It includes stainless steel legs that are adjustable from 4 to 6 inches high and has an LED on/off switch for simple operation. Its cleaning switch circulates water and product descaling without cooling. It works best in ambient temperatures between 41 to 109 degrees Fahrenheit and water temperatures between 41 to 95 degrees Fahrenheit. Overall, this model measures 2599/100 inches wide by 2757/100 inches deep by 3829/100 inches high.
Product Details
- Half Classic American style ice cubes
- Ice cube size: 9/10 in. W x 43/100 in. D x 1 1/50 in. H
- Daily production capacity: 223 lbs.
- 77-lbs. ice storage capacity
- Self-contained condenser
- Electro mechanic timer and dual switch
- 304 stainless steel construction
- Stainless steel door with opening and damping system
- Smart front ventilation system enables built-in installation of the unit
- Cleaning switch circulates water and descaling product without cooling
- "Never Stop" motor pump doesn't have seals to avoid hard water deterioration
- All panels can be disassembled for simple service and installation
- Electronic controls enhance unit performance while adapting to extreme climates
- Natural R290 refrigerant
- Led on/off switch and PCB mounted at bottom
- Vertical plate evaporator
- Stainless steel legs are adjustable between 4 and 6 in.
- Ambient temperature range: 41 to 109 degrees F
- Water temperature range: 41 to 95 degrees F
Dimensions & Utilities
- 2599/100 in. W x 2757/100 in. D x 3829/100 in. H
- 14.5 psi (1 bar)/87 psi (6 bar)
- 115 V/60 Hz/1ph
ITV Ice Makers SPIKA NG 230 A1H Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | ITV Ice Makers |
24 Hr. Production (lb) | 223 |
Bin Capacity (lb) | 77 |
Compressor Type | Air Cooled |
Depth (in) | 27.56 |
Drain Type | Gravity |
Height (in) | 38.76 |
Hertz | 60 |
Ice Type | Half Cube |
Suggested Use | Commercial |
Voltage | 115 |
Warranty | 3 year parts & labor; additional 2 year parts on compressor & evaporator |
Width (in) | 25.99 |
Series | Spika |
Phase | 1 |
Product | Undercounter Ice Makers |
Product Type | Ice Makers & Bins |
Weight | 141.00 |
Spec Sheet
